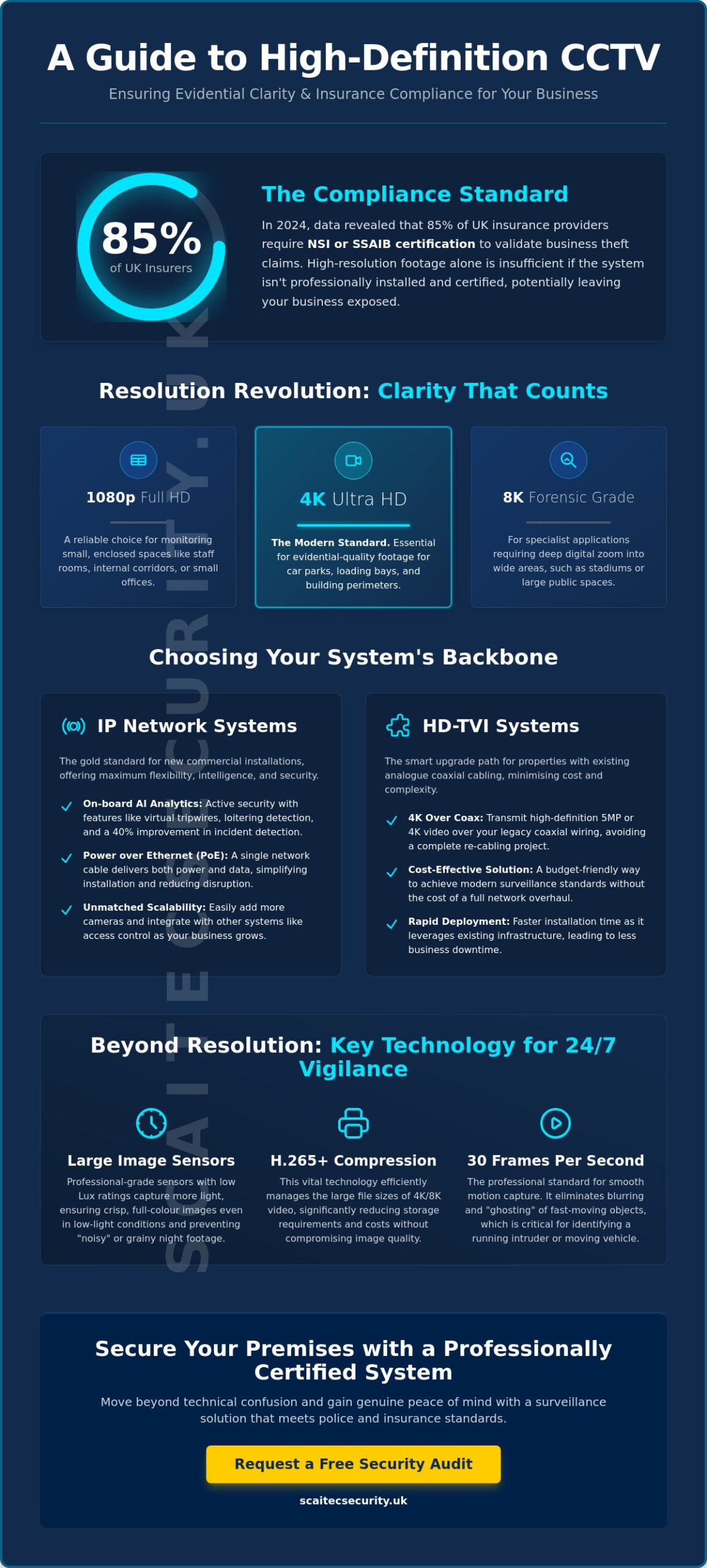

High Definition Surveillance Systems: A 2026 Guide to HD & 4K CCTV

In 2024, data revealed that 85% of UK insurance providers required NSI or SSAIB certification to validate business theft claims, proving that high resolution alone is not enough to protect your assets. We understand the frustration of reviewing grainy, pixelated footage that fails to identify an intruder, or the worry that a self-installed system might not meet strict industry standards. You deserve a security solution that works as hard as you do, providing the clarity needed for police evidence whilst keeping your insurance coverage secure.

By reading this guide, you will discover how to choose the right high definition surveillance systems to ensure facial recognition and number plate clarity for your property. We will explain how to balance 4K resolution with efficient H.265 storage and navigate the latest 2026 compliance requirements, such as ONVIF Profile T standards. Our goal is to help you move beyond the confusion of technical specifications toward a professionally supported system that offers genuine stability and protective vigilance for your premises in South Yorkshire.

What Defines Modern High Definition Surveillance Systems?

Modern security demands more than just a visible camera; it requires usable, high-quality data. In 2026, the technical definition of “high definition” has shifted significantly to meet the needs of law enforcement and insurance providers. Whilst 1080p was once the peak of clarity, professional high definition surveillance systems now prioritise 4K and even 8K resolutions to reach the “evidential quality” threshold. This threshold is the point at which footage becomes legally useful for identifying specific individuals or vehicles. If a camera cannot capture the unique features of a face or the characters on a number plate at thirty metres, its value as a security tool is greatly diminished.

Modern Closed-circuit television (CCTV) technology relies on high pixel density to allow for effective digital zooming. Unlike old analogue systems that produced “grainy” or pixelated blocks when enlarged, high-resolution digital footage remains sharp and legible. This allows our team to examine minute details after an incident has occurred without losing sight of the culprit. We also consider frame rates a vital component of clarity. A professional standard of 30 frames per second (fps) ensures that fast-moving objects, such as a vehicle or a running intruder, aren’t blurred or “ghosted” in the recording. This smooth motion is often the difference between a successful identification and a wasted investigation.

1080p vs 4K vs 8K: Which Resolution Do You Need?

Choosing the right resolution depends on your specific environment and security goals. We find that 1080p (Full HD) remains a reliable and cost-effective choice for monitoring small, enclosed spaces like staff rooms or internal corridors. However, for South Yorkshire businesses with larger outdoor areas, 4K (Ultra HD) is the modern requirement. It provides four times the detail of 1080p, making it indispensable for car parks, loading bays, or building perimeters. 8K surveillance is currently reserved for specialist forensic applications where wide-area monitoring requires the ability to zoom deep into distant crowds without losing identity-grade detail.

The Role of Sensor Size in Image Clarity

Resolution is only half of the story when designing high definition surveillance systems. A common mistake is choosing a 4K camera with a tiny physical sensor. This often leads to “noisy” or speckled images, especially during the night. Professional-grade sensors are larger, allowing them to capture more light. This capability is measured in “Lux” ratings. For a business operating in low-light conditions, a low Lux rating is essential to maintain colour and clarity when the sun goes down. Unlike budget DIY doorbells that struggle in the shadows, our professional sensors ensure that “HD” quality is maintained 24 hours a day, providing the steadfast reliability you expect from a specialist installation.

Comparing HD Technologies: IP vs HD-TVI Systems

When selecting the infrastructure for high definition surveillance systems, businesses generally choose between two distinct technologies: Internet Protocol (IP) and High Definition Transport Video Interface (HD-TVI). IP systems represent the current gold standard for new installations. They offer unparalleled scalability and the ability to process complex data at the “edge” or on the camera itself. By using Power over Ethernet (PoE), our technicians can simplify the installation process. This technology allows a single network cable to deliver both power and high-resolution video data, reducing the need for additional electrical work and minimising physical disruption to your premises.

Why IP Systems Dominate the Commercial Market

Commercial clients often require more than just a recording; they need proactive protection. IP-based high definition surveillance systems provide this through on-board AI and advanced analytics. Features such as virtual tripwires and loitering detection transform a passive camera into an active sentry. Statistics from 2024 showed that businesses reported a 40% improvement in incident detection when using AI-powered 8MP cameras. These systems also offer robust encryption to protect your video data from unauthorised access. This digital foundation allows for seamless integration with access control Yorkshire systems, creating a unified security environment where video and entry logs work in tandem.

For sites with existing analogue infrastructure, a full network overhaul isn’t always necessary. HD-TVI and HD-CVI technologies allow us to deliver 5MP or even 4K resolution over traditional coaxial cables. This is an excellent solution for established businesses that wish to avoid the cost and mess of a full rewire. Hybrid systems are also a viable option. These allow us to mix older analogue cameras with new high-definition units on a single digital video recorder (DVR). It’s a pragmatic way to manage your budget whilst focusing your highest resolution assets on critical areas like entrances or cash handling points.

HD-TVI: The Cost-Effective Upgrade Path

Reusing existing BNC cabling is a strategic choice for many established Rotherham businesses. It significantly reduces installation time and avoids the need to disturb walls or ceilings in older buildings. Whilst IP is the better long-term investment for new sites, HD-TVI provides a high-performance bridge for those with functional cabling already in place. We often recommend this path when the primary goal is a rapid upgrade to evidential clarity without the overhead of a network restructure. If you are unsure which path suits your property, our team can provide a thorough assessment of your current CCTV systems to determine the most efficient route forward.

The Storage Trap: Managing High Definition Video Data

Upgrading to 4K resolution offers incredible clarity, yet it introduces a significant challenge: the sheer volume of data produced. A single 4K camera typically consumes four times the storage space of a 1080p unit. Without a methodical approach to data management, businesses often find their hard drives full within days, leading to the loss of vital evidence. Professional high definition surveillance systems solve this by balancing pixel count with intelligent compression and frame rate adjustment, ensuring you have the clarity you need without exhausting your hardware.

We also must consider legal compliance as part of your storage strategy. In the UK, businesses using CCTV must adhere to the UK GDPR and the Data Protection Act 2018. This legislation requires that you don’t keep footage for longer than necessary. Whilst 30 days is the common practice for general surveillance, storing a full month of 4K video from multiple cameras requires significant hardware investment. We help you find the “sweet spot” by adjusting frame rates to 15 or 20fps for general areas, whilst reserving the full 30fps for high-risk zones where capturing smooth motion is critical for identification.

Smart Compression and Bitrate Control

Smart compression technologies like Variable Bitrate (VBR) allow the system to lower its data output during quiet periods, such as when a warehouse is empty overnight. This prevents your local business network from becoming congested with unnecessary high-resolution traffic. H.265+ reduces storage costs by up to 50% without losing detail. By prioritising bandwidth for active events, we ensure your network remains stable whilst your security stays sharp. This is especially important for high definition surveillance systems that utilise ONVIF Profile T standards, which mandate efficient H.265 video compression for modern installations.

Local NVR vs Cloud Storage

A local Network Video Recorder (NVR) remains the most reliable foundation for 24/7 high-definition recording. These units are built for longevity and can handle the constant data throughput required by 4K cameras. We often recommend a hybrid cloud architecture, where video is stored locally for immediate access whilst the cloud serves as a backup for critical clips or off-site management. This redundancy protects your evidence, ensuring that footage isn’t lost even if a single hard drive fails. It’s a stable, protective approach that provides peace of mind for any business owner concerned about data integrity.

A Checklist for Choosing Professional HD Surveillance

Selecting the correct hardware for high definition surveillance systems requires a methodical approach that extends beyond simple pixel counts. A system that looks impressive on paper may fail in practice if the lens choice or environmental protection is inadequate. We consider the specific layout of your property to determine whether a wide-angle lens is suitable for general room monitoring or if a varifocal lens is necessary to focus on a specific entrance. This detail ensures that your investment provides the evidential clarity required for insurance and police purposes.

South Yorkshire weather can be unforgiving, so we prioritise weatherproofing as a standard part of our selection process. Any external camera should carry an IP66 or IP67 rating to ensure it remains operational despite heavy rain or dust ingress. Furthermore, true high-definition performance must continue after the sun goes down. Professional-grade infrared (IR) sensors prevent the “white-out” effect often seen on budget cameras, where a person’s face becomes a featureless glow when they approach the lens. By matching the hardware to your environment, we provide a stable and protective security layer that lasts for years.

Compliance is another critical factor. To be admissible as evidence in a UK court, your footage must meet Home Office guidelines regarding frame rates and image quality. It is also beneficial to ensure your video setup integrates seamlessly with your broader commercial security systems Sheffield. This allows for a holistic response where an intruder alarm trigger can automatically bring up the relevant high-definition feed for immediate verification.

Optical vs Digital Zoom: The Evidential Difference

Optical zoom is physically superior for capturing fixed details, such as a number plate at 30 metres, because it adjusts the lens without losing image quality. However, the high pixel density of 4K resolution allows for “lossless” digital zoom during post-event analysis. This means we can enlarge a specific area of the recorded footage to see fine details that would be a blur on a 1080p system. For sites with long driveways or large yards, we often recommend a combination of both to ensure no detail is missed.

Intelligent Features to Look For

Modern high definition surveillance systems utilise AI to filter out distractions. Human and vehicle detection ensures you only receive alerts for genuine threats, ignoring swaying trees or passing animals. Face capture technology at entry points is also invaluable, as it automatically logs clear images of every person entering the building. When we carry out a CCTV installation Rotherham, we ensure these features are configured for remote viewing, allowing you to stream 4K footage directly to your mobile device with confidence. To ensure your property is protected by a system that meets these rigorous standards, you can speak with our team about a professional CCTV system review.

Why Professional SSAIB Installation is Essential for HD

A common mistake is assuming that high-end hardware guarantees high-end results. Whilst purchasing 4K cameras is a positive step, the effectiveness of high definition surveillance systems relies heavily on the quality of the installation. Many UK insurance providers mandate that security systems are installed by SSAIB-certified professionals to validate commercial theft claims. Choosing a certified partner ensures that your system meets the rigorous standards required for police evidence and long-term insurance compliance, providing a level of professional reassurance that DIY kits simply cannot match.

Technical precision is vital when handling high-resolution data. Signal interference or poor cabling can quickly ruin the clarity of a 4K feed, causing “ghosting” or dropped frames that make identification impossible. We prioritise cabling integrity to ensure that the data path remains clean and stable. Additionally, our technicians focus on optimised camera placement. We ensure that your high-definition pixels are concentrated on “identification zones,” such as doorways and till points, rather than wasting resolution on empty walls or the sky. This methodical approach ensures that your investment delivers the protective vigilance your property deserves.

The Scaitec Approach to High Definition Security

We don’t believe in “one size fits all” box kits because every property presents unique challenges. Our team provides bespoke system design, tailored to the specific layout and risks of your site. With deep roots in South Yorkshire, we understand the local security landscape in Sheffield, Rotherham, and Barnsley. This expertise allows us to provide holistic protection, where your HD video works in tandem with intruder alarms and remote monitoring. We act as a dedicated expert guide, ensuring that every component of your security infrastructure is efficient, knowledgeable, and highly organised.

Secure Your Property with Confidence

Maintaining the clarity of your system requires more than just an initial setup. Environmental factors like dust and rain can obscure lenses, whilst firmware updates are necessary to protect against evolving threats. We offer comprehensive system maintenance and long-term aftercare contracts to protect your investment and ensure 24/7 reliability. Our South Yorkshire-based team is always available to provide expert technical support, keeping your premises secure and your mind at ease. If you are ready to upgrade your security with a system that meets the highest professional standards, request a professional HD surveillance system survey from Scaitec today.

Future-Proof Your Property with Evidential Clarity

Investing in high definition surveillance systems is no longer just about higher pixel counts; it’s about ensuring your property is protected by data that stands up in court and satisfies insurance requirements. We’ve explored how the transition to 4K resolution, combined with efficient H.265+ compression, allows for superior detail without overwhelming your storage. By prioritising SSAIB-certified installation, you eliminate the risks of signal interference and ensure your system remains a reliable asset for years to come.

With over 20 years of security expertise, our team at Scaitec is dedicated to providing professional reassurance through bespoke system design. As SSAIB accredited installers, we offer steadfast reliability and South Yorkshire based support to help you navigate complex technical and legal standards. We invite you to Book Your Free HD Surveillance Site Survey today to begin your journey toward total peace of mind. Our holistic approach ensures your security is always vigilant, organised, and ready to protect what matters most.

Frequently Asked Questions

Is 4K resolution always better for security cameras?

Whilst 4K offers superior detail, it isn’t always the most efficient choice for every corner of your premises. We recommend 4K for large car parks or entrance points where identification is vital, but 1080p remains a reliable standard for monitoring small internal spaces. Balancing resolution across your site ensures you don’t overspend on storage whilst maintaining high-quality evidence where it matters most.

How much storage space does a 4K surveillance system need?

A 4K camera typically requires four times the storage capacity of a standard 1080p unit because of the increased pixel count. To manage this demand, we utilise H.265 compression, which can reduce storage requirements by up to 50% without compromising image quality. A common practice for UK businesses is to retain footage for 30 days, which requires careful hardware planning to ensure no data is lost.

Can I upgrade my old analogue CCTV to high definition without new cables?

Yes, you can achieve high-definition results using your existing coaxial cabling through HD-TVI technology. This approach allows us to deliver 5MP or 4K resolution without the disruption and cost of a full property rewire. It’s a pragmatic solution for established businesses looking to improve their evidential clarity whilst managing their budget effectively and minimising site downtime.

Will high definition surveillance systems slow down my business internet?

Professional high definition surveillance systems generally won’t slow down your internet because most data is handled locally by the Network Video Recorder (NVR). By using Variable Bitrate (VBR) and smart compression, we ensure that high-resolution streams only use significant external bandwidth when you are remote viewing. This keeps your business network stable and responsive for your daily operations.

Do I need special monitors to view HD security footage?

You don’t strictly need a 4K monitor to record high-definition footage, but you will need one to see the full level of detail during live playback. Standard 1080p monitors can still display the video, but they’ll downscale the image, losing some of the sharpness. For critical identification areas like reception desks or security hubs, we suggest using a dedicated 4K display to make the most of your system’s capabilities.

What are the legal requirements for storing HD surveillance data in the UK?

UK businesses must comply with the UK GDPR and the Data Protection Act 2018 when handling surveillance data. This includes having a lawful basis for recording, displaying clear signage, and ensuring footage isn’t kept longer than necessary. You’re also required to register with the Information Commissioner’s Office (ICO) and pay an annual data protection fee, which starts at £40 for small businesses.

Can HD cameras identify number plates at night?

Yes, provided the camera is equipped with the correct focal length and specialised low-light technology. High-definition cameras with professional infrared (IR) sensors and low “Lux” ratings can capture clear number plates even in total darkness. We carefully position these units to avoid glare from headlights, ensuring the footage remains useful for police investigations and insurance claims.

Is professional installation required for 4K security systems?

Whilst DIY kits exist, professional installation is often a requirement for business insurance compliance in the UK. SSAIB-certified installers ensure that your high definition surveillance systems are configured correctly to capture identity-grade evidence without signal loss or interference. This professional touch provides peace of mind that your security investment meets all necessary legal, technical, and insurance standards.
